Technical Data
50 Hz version:
Max Blow – 510 m³/h / +230~+400 mbar
Max Vacuum – 510 m³/h / -240~-300 mbar
60 Hz version:
Max Blow – 600 m³/h / +230~+450 mbar
Max Vacuum – 600 m³/h / -250~-350 mbar
CF series
Product Features
- CE Norm: 89/336, 73/23, EN60204-1, EN50081-2, EN50082-2
- Insulation Class: F (155°C)
- Ambient Temp.: 30°C
- Degree of Protection: IP 54 (IP 55 is optional)
- Mounting: Vertical / horizontal
- Voltage Tolerance: ±10% of nominal U
Applications
- Pneumatic air tube systems
- Pneumatic conveying systems
- Vacuum dealing systems
- Vacuum transport systems
- Drying systems
- Bottle-filling stations
- Printing machines
- Dental equipment

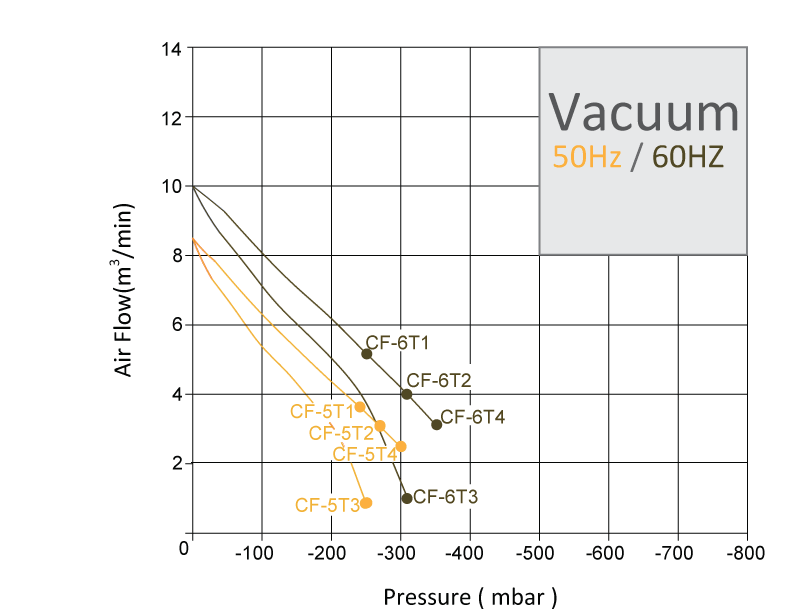

Performance Curve
50Hz
| Model | Phase | Maximum performance when used as Blower | Maximum performance when used as Vacuum | Motor ratings | Noise Level dB(A) |
Weight | |||||
| Rated output | Voltage | Current when used as Blower | Current when used as Vacuum | ||||||||
| m³/min | mbar | m³/min | mbar | kW | V | Amps | Amps | kg | |||
| CF-5T1 | 3 | 8.5 | +230 | 8.5 | -240 | 4.0 | 200-240 / 345-416 | 17.3-16.5 / 10-9.3 | 17.1-16.3 / 10-9.2 | 73 | 117 |
| CF-5T2 | 3 | 8.5 | +300 | 8.5 | -270 | 5.5 | 200-240 / 345-416 | 21.8-21.7 / 12.6-12.3 | 18.8-19.8 / 10.8-11 | 73 | 120 |
| CF-5T3 | 3 | 8.5 | +280 | 8.5 | -250 | 5.5 | 200-240 / 345-416 | 19.7-20.5 / 11.4-11.6 | 15.6-17.9 / 8.9-10.1 | 73 | 120 |
| CF-5T4 | 3 | 8.5 | +400 | 8.5 | -300 | 7.5 | 200-240 / 345-416 | 28.1-30.9 / 16-17.4 | 24-30.4 / 13.7-16.6 | 73 | 123 |
60Hz
| Model | Phase | Maximum performance when used as Blower | Maximum performance when used as Vacuum | Motor ratings | Noise Level dB(A) |
Weight | |||||
| Rated output | Voltage | Current when used as Blower | Current when used as Vacuum | ||||||||
| m³/min | mbar | m³/min | mbar | kW | V | Amps | Amps | kg | |||
| CF-6T1 | 3 | 10 | +230 | 10 | -250 | 4.6 | 208-275 / 380-480 | 22.8-17.8 / 12.4-10 | 22.2-17.6 / 12.5-10.1 | 73 | 117 |
| CF-6T2 | 3 | 10 | +280 | 10 | -310 | 6.3 | 208-275 / 380-480 | 26.1-21.8 / 14.1-12.4 | 25.4-21.7 / 13.7-12.3 | 73 | 120 |
| CF-6T3 | 3 | 10 | +280 | 10 | -310 | 6.3 | 208-275 / 380-480 | 25.1-21.1 / 13.7-12.2 | 22.6-19.7 / 12.6-11.5 | 73 | 120 |
| CF-6T4 | 3 | 10 | +450 | 10 | -350 | 8.6 | 208-275 / 380-480 | 36.4-32.6 / 20.5-18.8 | 32.5-30.8 / 17.0-17.5 | 73 | 123 |
