Technical Data
50 Hz version:
Max Blow – 228 m³/h / +410~+490 mbar
Max Vacuum – 228 m³/h / -340~-380 mbar
60 Hz version:
Max Blow – 270 m³/h / +360~+480 mbar
Max Vacuum – 270 m³/h / -380~-410 mbar
CF-1 series
Product Features
- CE Norm: 89/336, 73/23, EN60204-1, EN50081-2, EN50082-2
- Insulation Class: F (155°C)
- Ambient Temp.: 30°C
- Degree of Protection: IP 54 (IP 55 is optional)
- Mounting: Vertical / horizontal
- Voltage Tolerance: ±10% of nominal U
Applications
- Pneumatic air tube systems
- Pneumatic conveying systems
- Vacuum dealing systems
- Vacuum transport systems
- Drying systems
- Bottle-filling stations
- Printing machines
- Dental equipment

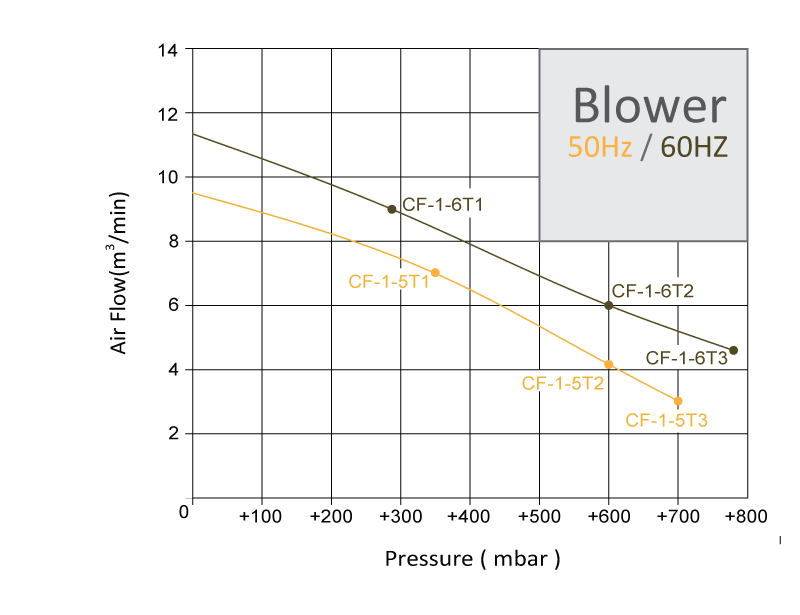

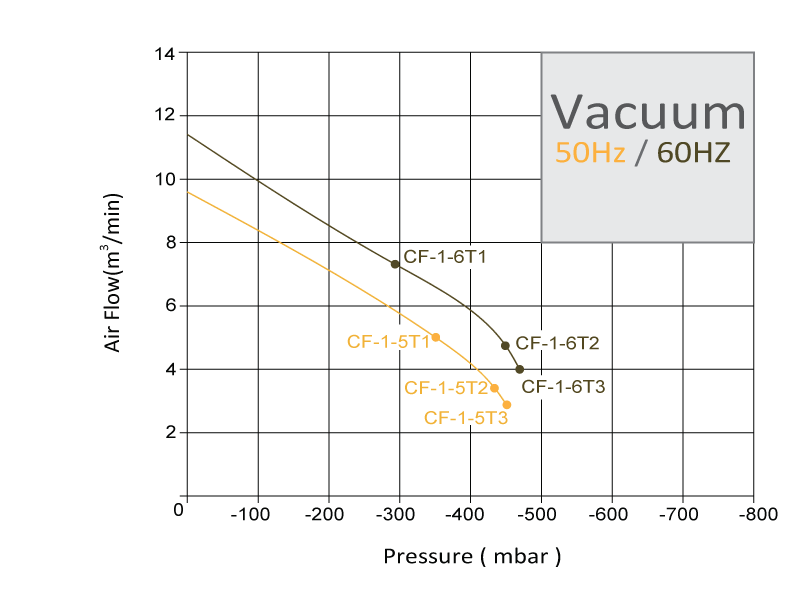

Performance Curve
50Hz
| Model | Phase | Maximum performance when used as Blower | Maximum performance when used as Vacuum | Motor ratings | Noise Level dB(A) |
Weight | |||||
| Rated output | Voltage | Current when used as Blower | Current when used as Vacuum | ||||||||
| m³/min | mbar | m³/min | mbar | kW | V | Amps | Amps | kg | |||
| CF-1-5T1 | 3 | 9.5 | +350 | 9.5 | -350 | 7.5 | 200-240△/345-415Y | 31.5△/18.2Y | 31.5△/18.2Y | 76 | 112 |
| CF-1-5T2 | 3 | 9.5 | +600 | 9.5 | -430 | 13 | 200-240△/345-415Y | 46.8△/27.0Y | 46.8△/27.0Y | 76 | 142 |
| CF-1-5T3 | 3 | 9.5 | +700 | 9.5 | -450 | 20 | 200-240△/345-415Y | 66.7△/38.6Y | 66.7△/38.6Y | 76 | 160 |
60Hz
| Model | Phase | Maximum performance when used as Blower | Maximum performance when used as Vacuum | Motor ratings | Noise Level dB(A) |
Weight | |||||
| Rated output | Voltage | Current when used as Blower | Current when used as Vacuum | ||||||||
| m³/min | mbar | m³/min | mbar | kW | V | Amps | Amps | kg | |||
| CF-1-6T1 | 3 | 11.3 | +290 | 11.3 | -290 | 8.6 | 220-275△/380-480Y | 37.0△/21.3Y | 37.0△/21.3Y | 81 | 112 |
| CF-1-6T2 | 3 | 11.3 | +600 | 11.3 | -450 | 15 | 220-275△/380-480Y | 52.0△/30.0Y | 52.0△/30.0Y | 81 | 142 |
| CF-1-6T3 | 3 | 11.3 | +780 | 11.3 | -470 | 22 | 220-275△/380-480Y | 76.0△/44.0Y | 76.0△/44.0Y | 81 | 160 |
