CC series

Product Features

  • CE Norm: 89/336, 73/23, EN60204-1, EN50081-2, EN50082-2
  • Insulation Class: F (155°C)
  • Ambient Temp.: 30°C
  • Degree of Protection: IP 54 (IP 55 is optional)
  • Mounting: Vertical / horizontal
  • Voltage Tolerance: ±10% of nominal U

Applications

  • Pneumatic air tube systems
  • Pneumatic conveying systems
  • Vacuum dealing systems
  • Vacuum transport systems
  • Drying systems
  • Bottle-filling stations
  • Printing machines
  • Dental equipment

down-1        down-2

分類: ,

Technical Data

50 Hz version:
Max Blow – 144 m³/h / +100~+200 mbar
Max Vacuum – 144 m³/h / -90~-180 mbar

60 Hz version:
Max Blow – 180 m³/h / +135~+230 mbar
Max Vacuum – 180 m³/h / -135~-210 mbar

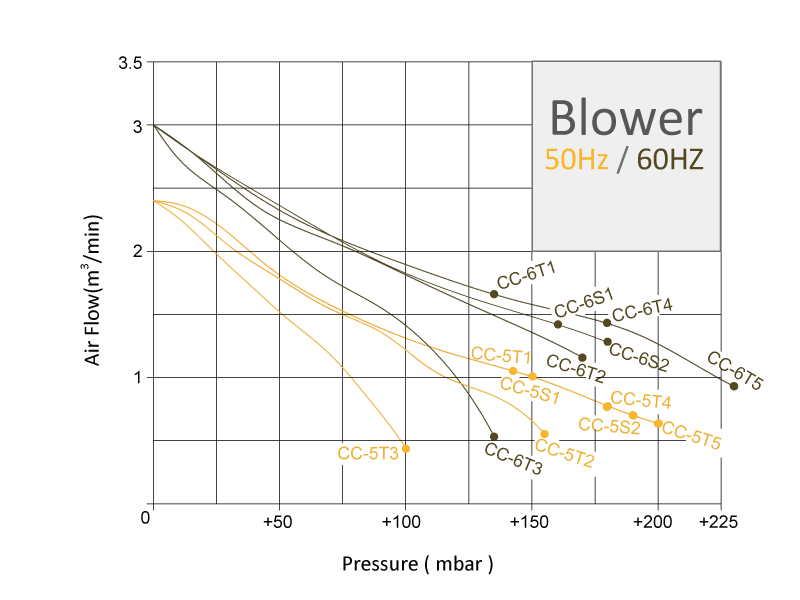

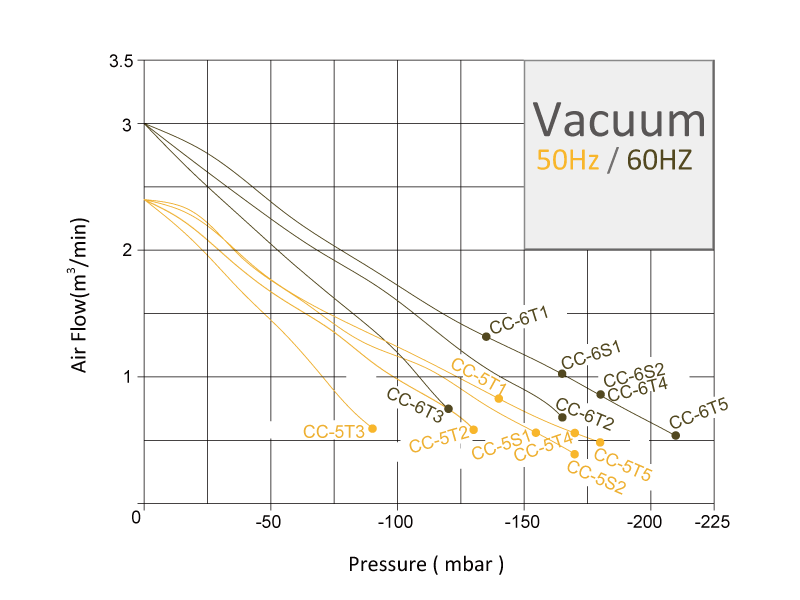

Performance Curve

50Hz

Model Phase Maximum performance when used as Blower Maximum performance when used as Vacuum Motor ratings Noise
Level dB(A)		 Weight
Rated output Voltage Current  when used as Blower Current  when used as Vacuum
m³/min mbar m³/min mbar kW V Amps Amps kg
CC-5T1 3 2.4 +140 2.4 -140 0.76 200-240 / 345-416 3.60-4.85 / 2.00-2.65 3.51-4.78 / 2.02-2.63 69 15.3
CC-5T2 3 2.4 +155 2.4 -130 0.76 200-240 / 345-416 3.53-4.74 / 2.00-2.63 3.34-4.63 / 1.9-2.59 69 15.3
CC-5T3 3 2.4 +100 2.4 -90 0.76 200-240 / 345-416 2.98-4.67 / 1.68-2.50 2.86-4.51 /1.6-2.48 69 15.3
CC-5T4 3 2.4 +180 2.4 -170 0.90 200-240 / 345-416 4.30-4.80 / 2.50-2.82 4.0-4.66 / 2.31-2.74 69 16
CC-5T5 3 2.4 +200 2.4 -180 1.10 200-240 / 345-416 4.80-5.53 / 2.77-3.14 4.5-5.35 / 2.54-3.05 69 17.2
CC-5S1 1 2.4 +150 2.4 -155 0.80 104-127 / 208-254 11.3-14.6 / 5.70-7.40 11.68-14.45 / 5.82-7.39 69 17
CC-5S2 1 2.4 +190 2.4 -170 1.10 104-127 / 208-254 14.5-16.4 / 7.20-8.30 13.2-16 / 6.59-8.12 69 18.2

60Hz

Model Phase Maximum performance when used as Blower Maximum performance when used as Vacuum Motor ratings Noise
Level dB(A)		 Weight
Rated output Voltage Current  when used as Blower Current  when used as Vacuum
m³/min mbar m³/min mbar kW V Amps Amps kg
CC-6T1 3 3.0 +135 3.0 -135 0.93 208-275 / 380-480 3.48-4.16 / 1.95-2.34 3.7-4.37 / 2.08-2.47 72 15.3
CC-6T2 3 3.0 +170 3.0 -165 0.93 208-275 / 380-480 4.40-4.58 / 2.42-2.63 4.0-4.45 / 2.24-2.53 72 15.3
CC-6T3 3 3.0 +135 3.0 -120 0.93 208-275 / 380-480 3.48-4.16 / 1.95-2.34 3.18-3.98 / 1.83-2.35 72 15.3
CC-6T4 3 3.0 +180 3.0 -180 1.15 208-275 / 380-480 4.87-4.60 / 2.63-2.74 4.65-4.65 / 2.61-2.71 72 16
CC-6T5 3 3.0 +230 3.0 -210 1.50 208-275 / 380-480 6.00-5.50 / 3.30-3.25 5.49-5.27 / 3.0-3.15 72 17.2
CC-6S1 1 3.0 +160 3.0 -165 0.90 104-127 / 208-254 15.1-12.2 / 7.60-6.20 14.48-11.8 / 7.25-6.0 72 17
CC-6S2 1 3.0 +180 3.0 -180 1.30 208-275 / 380-480 16.4-13.3 / 8.10-6.70 16.15-13.06 / 8.04-6.54 72 18.2
