Technical Data
50 Hz version:
Max Blow – 228 m³/h / +410~+490 mbar
Max Vacuum – 228 m³/h / -340~-380 mbar
60 Hz version:
Max Blow – 270 m³/h / +360~+480 mbar
Max Vacuum – 270 m³/h / -380~-410 mbar
CD-1 series
Product Features
- CE Norm: 89/336, 73/23, EN60204-1, EN50081-2, EN50082-2
- Insulation Class: F (155°C)
- Ambient Temp.: 30°C
- Degree of Protection: IP 54 (IP 55 is optional)
- Mounting: Vertical / horizontal
- Voltage Tolerance: ±10% of nominal U
Applications
- Pneumatic air tube systems
- Pneumatic conveying systems
- Vacuum dealing systems
- Vacuum transport systems
- Drying systems
- Bottle-filling stations
- Printing machines
- Dental equipment

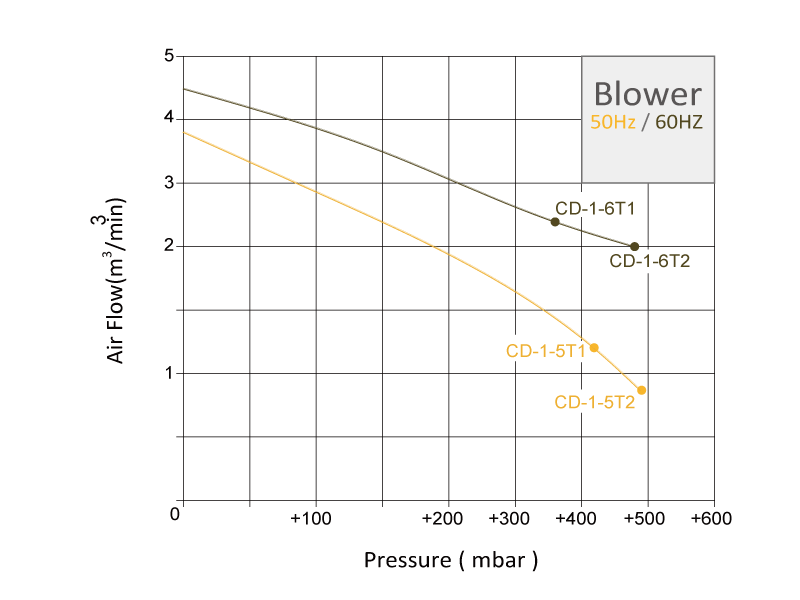

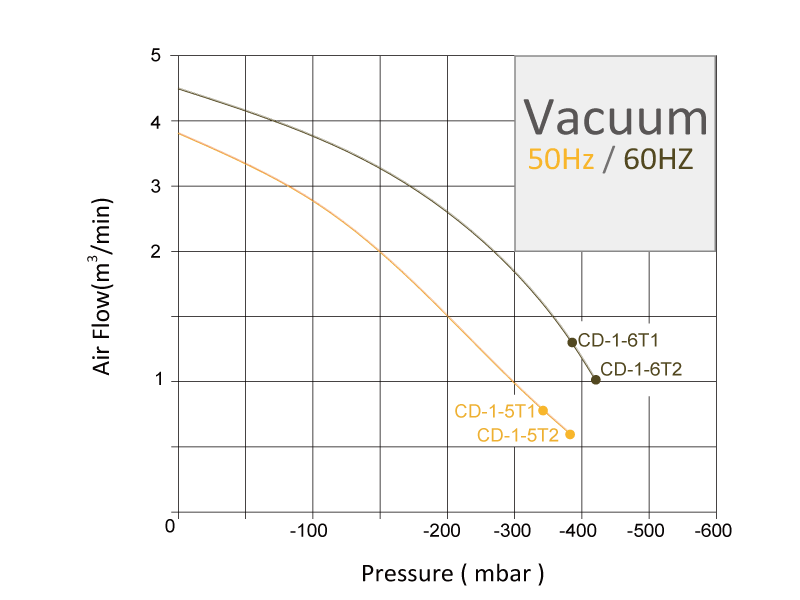

Performance Curve
50Hz
| Model | Phase | Maximum performance when used as Blower | Maximum performance when used as Vacuum | Motor ratings | Noise Level dB(A) |
Weight | |||||
| Rated output | Voltage | Current when used as Blower | Current when used as Vacuum | ||||||||
| m³/min | mbar | m³/min | mbar | kW | V | Amps | Amps | kg | |||
| CD-1-5T1 | 3 | 3.8 | +410 | 3.8 | -340 | 3.0 | 200-240 / 345-416 | 11.8-12.2 / 6.9-7.1 | 10.6-11.7 / 6.08-6.3 | 76 | 44 |
| CD-1-5T2 | 3 | 3.8 | +490 | 3.8 | -380 | 4.0 | 200-240 / 345-416 | 14.1-15.7 / 8.2-9.1 | 11.5-14.1 / 6.7-8.2 | 76 | 48 |
60Hz
| Model | Phase | Maximum performance when used as Blower | Maximum performance when used as Vacuum | Motor ratings | Noise Level dB(A) |
Weight | |||||
| Rated output | Voltage | Current when used as Blower | Current when used as Vacuum | ||||||||
| m³/min | mbar | m³/min | mbar | kW | V | Amps | Amps | kg | |||
| CD-1-6T1 | 3 | 4.5 | +360 | 4.5 | -380 | 3.45 | 208-275 / 380-480 | 11.1-12.9 / 6.6-7.2 | 11.8-12.9 / 7-7.4 | 77 | 44 |
| CD-1-6T2 | 3 | 4.5 | +480 | 4.5 | -410 | 4.6 | 208-275 / 380-480 | 14.8-16.2 / 8.7-8.8 | 13.4-13.6 / 7.6-7.9 | 77 | 48 |
