Technical Data
50 Hz version:
Max Blow – 1134 m³/h / +190~+440 mbar
Max Vacuum – 1134 m³/h / -200~-350 mbar
60 Hz version:
Max Blow – 1344 m³/h / +170~+420 mbar
Max Vacuum – 1344 m³/h / -180~-365 mbar
CG series
Product Features
- CE Norm: 89/336, 73/23, EN60204-1, EN50081-2, EN50082-2
- Insulation Class: F (155°C)
- Ambient Temp.: 30°C
- Degree of Protection: IP 54 (IP 55 is optional)
- Mounting: Vertical / horizontal
- Voltage Tolerance: ±10% of nominal U
Applications
- Pneumatic air tube systems
- Pneumatic conveying systems
- Vacuum dealing systems
- Vacuum transport systems
- Drying systems
- Bottle-filling stations
- Printing machines
- Dental equipment

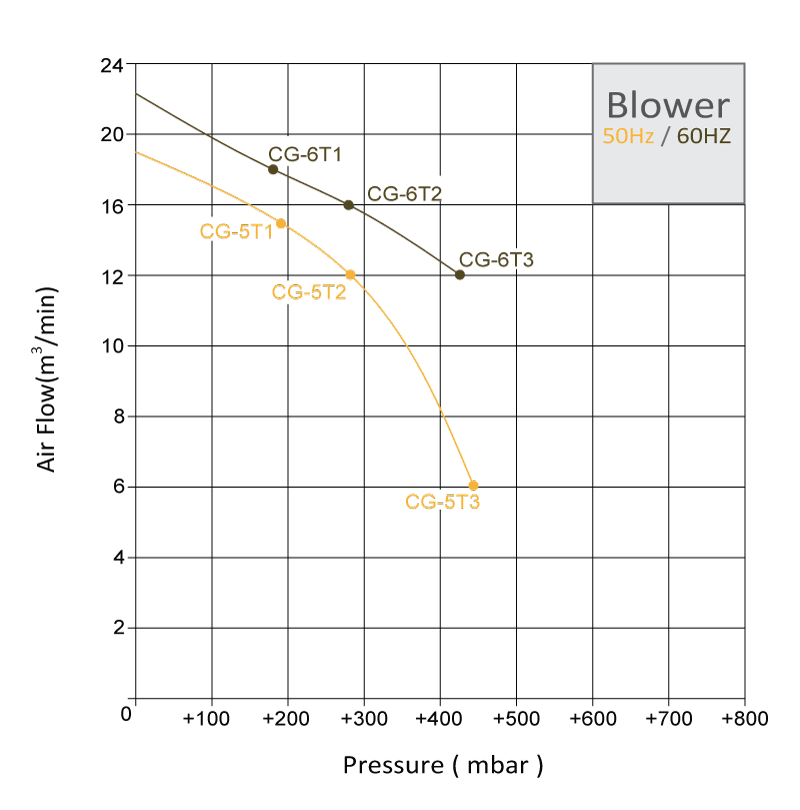

Performance Curve
50Hz
| Model | Phase | Maximum performance when used as Blower | Maximum performance when used as Vacuum | Motor ratings | Noise Level dB(A) |
Weight | |||||
| Rated output | Voltage | Current when used as Blower | Current when used as Vacuum | ||||||||
| m³/min | mbar | m³/min | mbar | kW | V | Amps | Amps | kg | |||
| CG-5T1 | 3 | 18.9 | +190 | 18.9 | -200 | 9.0 | 200-240△/345-415Y | 36.0△/20.8Y | 36.0△/20.8Y | 76 | 100 |
| CG-5T2 | 3 | 18.9 | +270 | 18.9 | -290 | 13 | 200-240△/345-415Y | 46.8△/27.0Y | 46.8△/27.0Y | 76 | 112 |
| CG-5T3 | 3 | 18.9 | +440 | 18.9 | -350 | 20 | 200-240△/345-415Y | 66.7△/38.6Y | 66.7△/38.6Y | 76 | 159 |
60Hz
| Model | Phase | Maximum performance when used as Blower | Maximum performance when used as Vacuum | Motor ratings | Noise Level dB(A) |
Weight | |||||
| Rated output | Voltage | Current when used as Blower | Current when used as Vacuum | ||||||||
| m³/min | mbar | m³/min | mbar | kW | V | Amps | Amps | kg | |||
| CG-6T1 | 3 | 22.4 | +170 | 22.4 | -180 | 11 | 220-275△/380-480Y | 37.0△/21.4Y | 37.0△/21.4Y | 81 | 100 |
| CG-6T2 | 3 | 22.4 | +270 | 22.4 | -280 | 15 | 220-275△/380-480Y | 51.5△/29.8Y | 51.5△/29.8Y | 81 | 112 |
| CG-6T3 | 3 | 22.4 | +420 | 22.4 | -365 | 22 | 220-275△/380-480Y | 76.0△/44.0Y | 76.0△/44.0Y | 81 | 159 |
