CC-1 series

Product Features

  • CE Norm: 89/336, 73/23, EN60204-1, EN50081-2, EN50082-2
  • Insulation Class: F (155°C)
  • Ambient Temp.: 30°C
  • Degree of Protection: IP 54 (IP 55 is optional)
  • Mounting: Vertical / horizontal
  • Voltage Tolerance: ±10% of nominal U

Applications

  • Pneumatic air tube systems
  • Pneumatic conveying systems
  • Vacuum dealing systems
  • Vacuum transport systems
  • Drying systems
  • Bottle-filling stations
  • Printing machines
  • Dental equipment

down-1        down-2

分類: ,

Technical Data

50 Hz version:
Max Blow – 144 m³/h / +260~+410 mbar
Max Vacuum – 144 m³/h / -280~-320 mbar

60 Hz version:
Max Blow – 180 m³/h / +230~+420 mbar
Max Vacuum – 180 m³/h / -250~-350 mbar

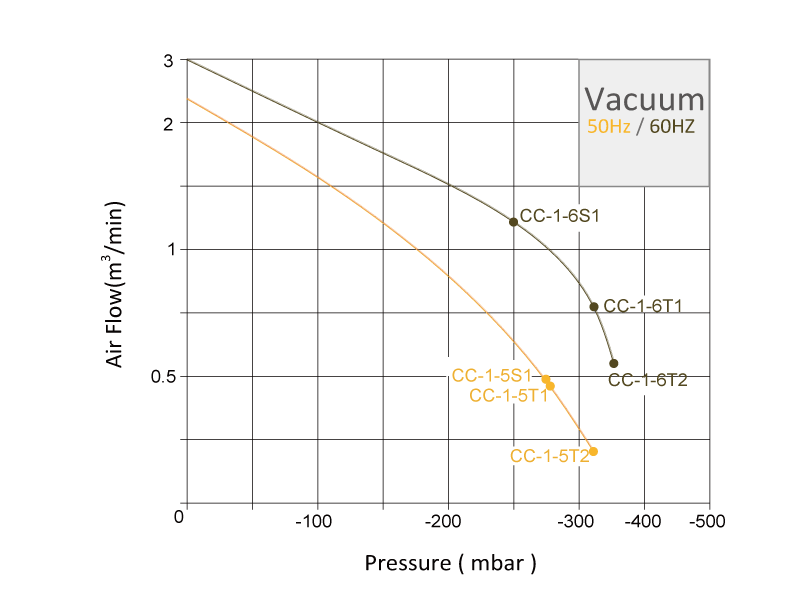

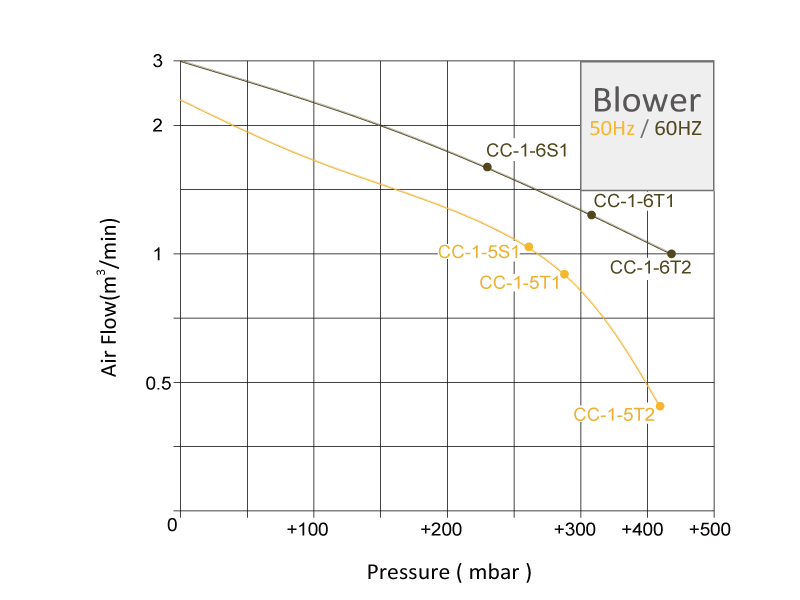

Performance Curve

50Hz

Model Phase Maximum performance when used as Blower Maximum performance when used as Vacuum Motor ratings Noise
Level dB(A)		 Weight
Rated output Voltage Current  when used as Blower Current  when used as Vacuum
m³/min mbar m³/min mbar kW V Amps Amps kg
CC-1-5T1 3 2.4 +280 2.4 -280 1.60 200-240△/ 345-416Y 6.53-7.94△ / 3.8-4.58Y 6.3-7.8△ / 3.6-4.5Y 73 28
CC-1-5T2 3 2.4 +410 2.4 -320 2.20 200-240△/ 345-416Y 8.8-12.8△ / 5-7.35Y 7.6-12.5△ / 4.3-7.2Y 73 29
CC-1-5S1 1 2.4 +260 2.4 -280 1.50 104-127/ 208-254 19.4-23.3 / 9.8-11.7 19.4-23.3 / 9.8-11.7 73 25

60Hz

Model Phase Maximum performance when used as Blower Maximum performance when used as Vacuum Motor ratings Noise
Level dB(A)		 Weight
Rated output Voltage Current  when used as Blower Current  when used as Vacuum
m³/min mbar m³/min mbar kW V Amps Amps kg
CC-1-6T1 3 3.0 +310 3.0 -320 2.05 208-275△/ 380-480Y 8.36-7.8△ / 4.6-4.53Y 8-7.6△ / 4.4-4.5Y 76 28
CC-1-6T2 3 3.0 +420 3.0 -350 2.55 208-275△/ 380-480Y 10.2-11.5△ / 5.6-6.7Y 7.6-12.5△ / 4.3-7.2Y 76 29
CC-1-6S1 1 3.0 +230 3.0 -250 1.75 104-127/ 208-254 21.9-17.8 / 11.1-8.94 22.8-17.7 / 11.1-9 76 25
