CB-1 series

Product Features

CE Norm: 89/336, 73/23, EN60204-1, EN50081-2, EN50082-2
Insulation Class: F (155°C)
Ambient Temp.: 30°C
Degree of Protection: IP 54 (IP 55 is optional)
Mounting: Vertical / horizontal
Voltage Tolerance: ±10% of nominal U

Applications

Pneumatic air tube systems
Pneumatic conveying systems
Vacuum dealing systems
Vacuum transport systems
Drying systems
Bottle-filling stations
Printing machines
Dental equipment

分類: Double Stage, Side Channel Blower

Technical Data
Specification

Technical Data

50 Hz version:
Max Blow – 78 m³/h / +240~+275 mbar
Max Vacuum – 78 m³/h / -210~-225 mbar

60 Hz version:
Max Blow – 96 m³/h / +250~+310 mbar
Max Vacuum – 96 m³/h / -250~-275 mbar

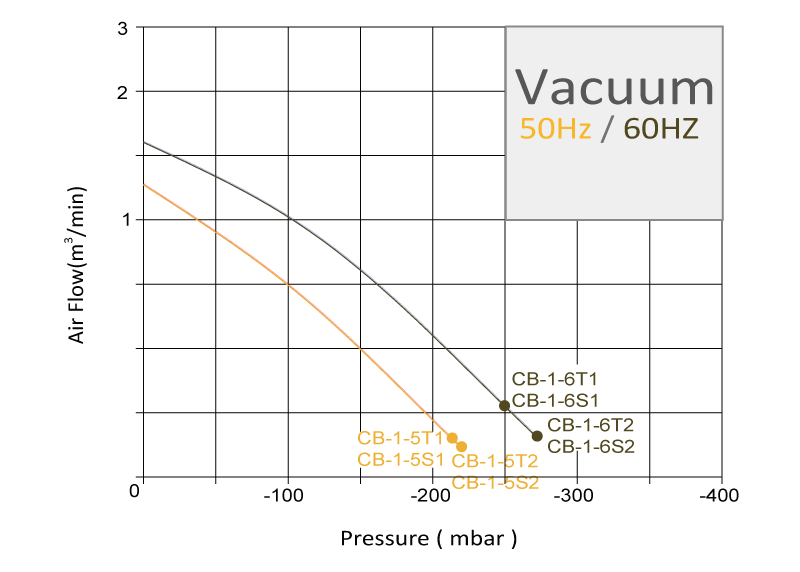

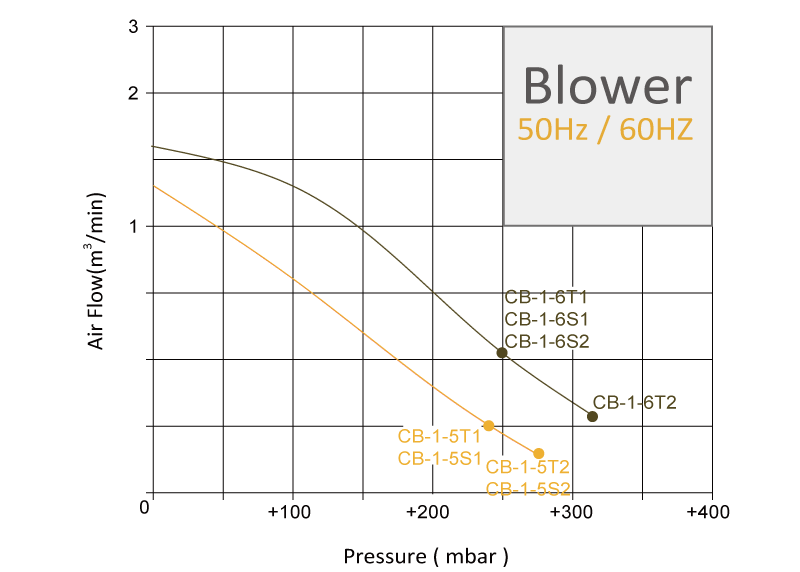

Performance Curve

50Hz

Model	Phase	Maximum performance when used as Blower		Maximum performance when used as Vacuum		Motor ratings				Noise Level dB(A)	Weight
		Maximum performance when used as Blower		Maximum performance when used as Vacuum		Rated output	Voltage	Current when used as Blower	Current when used as Vacuum		Weight
		m³/min	mbar	m³/min	mbar	kW	V	Amps	Amps		kg
CB-1-5T1	3	1.3	+240	1.3	-210	0.70	200-240△/ 345-416Y	3.26-4.3 / 1.87-2.46	3.04-4.23 / 1.75-2.42	67	15.7
CB-1-5T2	3	1.3	+275	1.3	-220	0.8	200-240△/ 345-416Y	3.2-3.5 / 1.86-2	2.87-3.3 / 1.7-1.88	67	16.2
CB-1-5S1	1	1.3	+240	1.3	-210	0.70	104-127/ 208-254	11.2-14.1 / 5.6-7.12	10-13.9 / 5-7	67	16
CB-1-5S2	1	1.3	+275	1.3	-225	0.8	104-127/ 208-254	12-14.2 / 6-7.2	10.4-13.9 / 5.2-7	67	16.3

60Hz

Model	Phase	Maximum performance when used as Blower		Maximum performance when used as Vacuum		Motor ratings				Noise Level dB(A)	Weight
		Maximum performance when used as Blower		Maximum performance when used as Vacuum		Rated output	Voltage	Current when used as Blower	Current when used as Vacuum		Weight
		m³/min	mbar	m³/min	mbar	kW	V	Amps	Amps		kg
CB-1-6T1	3	1.6	+250	1.6	-250	0.83	208-275△/ 380-480Y	3.26-4.3 / 1.87-2.46	3.4-3.95 / 1.94-2.3	69	15.7
CB-1-6T2	3	1.6	+310	1.6	-275	0.90	208-275△/ 380-480Y	3.2-3.5 / 1.86-2	3.5-3.48 / 1.98-2	69	162.2
CB-1-6S1	1	1.6	+250	1.6	-250	0.83	104-127/ 208-254	11.2-14.1 / 5.6-7.12	12.8-10.83 / 6.36-5.47	69	16
CB-1-6S2	1	1.6	+250	1.6	-275	0.90	208-275△/ 380-480Y	12-14.2 / 6-7.2	12.8-10.83 / 6.36-5.47	69	16.3
