Technical Data
50 Hz version:
Max Blow – 78 m³/h / +85~+105 mbar
Max Vacuum – 78 m³/h / -80~-115 mbar
60 Hz version:
Max Blow – 96 m³/h / +110~+150 mbar
Max Vacuum – 96 m³/h -100~-135 mbar
CB series
Product Features
- CE Norm: 89/336, 73/23, EN60204-1, EN50081-2, EN50082-2
- Insulation Class: F (155°C)
- Ambient Temp.: 30°C
- Degree of Protection: IP 54 (IP 55 is optional)
- Mounting: Vertical / horizontal
- Voltage Tolerance: ±10% of nominal U
Applications
- Pneumatic air tube systems
- Pneumatic conveying systems
- Vacuum dealing systems
- Vacuum transport systems
- Drying systems
- Bottle-filling stations
- Printing machines
- Dental equipment

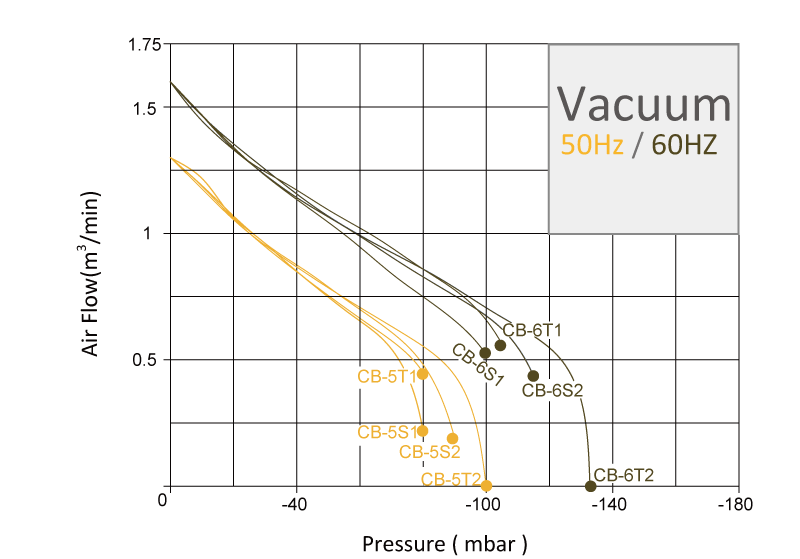

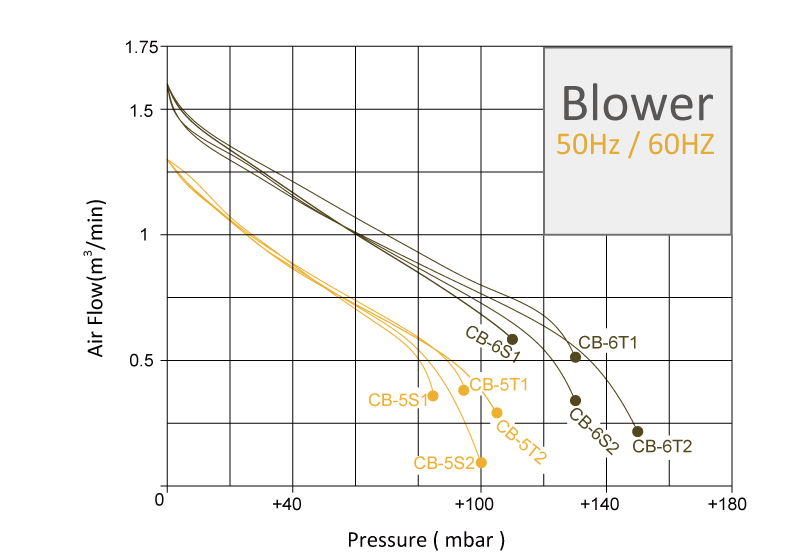

Performance Curve
50Hz
| Model | Phase | Maximum performance when used as Blower | Maximum performance when used as Vacuum | Motor ratings | Noise Level dB(A) |
Weight | |||||
| Rated output | Voltage | Current when used as Blower | Current when used as Vacuum | ||||||||
| m³/min | mbar | m³/min | mbar | kW | V | Amps | Amps | kg | |||
| CB-5T1 | 3 | 1.3 | +95 | 1.3 | -80 | 0.38 | 200-240 / 345-416 | 1.72-2.41 / 0.94-1.35 | 1.72-2.42 / 0.97-1.37 | 69 | 13 |
| CB-5T2 | 3 | 1.3 | +105 | 1.3 | -100 | 0.40 | 200-240 / 345-416 | 1.64-2.26 / 0.93-1.30 | 1.61-2.29 / 0.90-1.29 | 69 | 13 |
| CB-5S1 | 1 | 1.3 | +85 | 1.3 | -80 | 0.38 | 104-127 / 208-254 | 3.60-3.70 / 1.78-1.86 | 3.43-3.61 / 1.78-1.83 | 69 | 13.5 |
| CB-5S2 | 1 | 1.3 | +100 | 1.3 | -115 | 0.40 | 104-127 / 208-254 | 4.21-5.25 / 2.11-2.61 | 5.28-4.70 / 2.72-2.41 | 69 | 14.9 |
60Hz
| Model | Phase | Maximum performance when used as Blower | Maximum performance when used as Vacuum | Motor ratings | Noise Level dB(A) |
Weight | |||||
| Rated output | Voltage | Current when used as Blower | Current when used as Vacuum | ||||||||
| m³/min | mbar | m³/min | mbar | kW | V | Amps | Amps | kg | |||
| CB-6T1 | 3 | 1.6 | +130 | 1.6 | -105 | 0.42 | 208-275 / 380-480 | 1.88-2.31 / 1.08-1.36 | 1.84-2.34 / 1.06-1.35 | 65 | 13 |
| CB-6T2 | 3 | 1.6 | +150 | 1.6 | -135 | 0.50 | 208-275 / 380-480 | 1.91-2.28 / 1.10-1.31 | 1.84-2.24 / 1.04-1.27 | 65 | 13 |
| CB-6S1 | 1 | 1.6 | +110 | 1.6 | -100 | 0.42 | 104-127 / 208-254 | 5.33-4.52 / 2.65-2.27 | 4.96-4.27 / 2.50-2.16 | 65 | 13.5 |
| CB-6S2 | 1 | 1.6 | +130 | 1.6 | -115 | 0.50 | 208-275 / 380-480 | 5.80-5.21 / 3.00-2.67 | 5.28-4.70 / 2.72-2.41 | 65 | 14.9 |
