Technical Data
50 Hz version:
Max Blow – 318 m³/h / +210~+570 mbar
Max Vacuum – 318 m³/h / -220~-440 mba
60 Hz version:
Max Blow – 378 m³/h / +150~+660 mbar
Max Vacuum – 378 m³/h / -170~-460 mbar
CE-1 series
Product Features
- CE Norm: 89/336, 73/23, EN60204-1, EN50081-2, EN50082-2
- Insulation Class: F (155°C)
- Ambient Temp.: 30°C
- Degree of Protection: IP 54 (IP 55 is optional)
- Mounting: Vertical / horizontal
- Voltage Tolerance: ±10% of nominal U
Applications
- Pneumatic air tube systems
- Pneumatic conveying systems
- Vacuum dealing systems
- Vacuum transport systems
- Drying systems
- Bottle-filling stations
- Printing machines
- Dental equipment

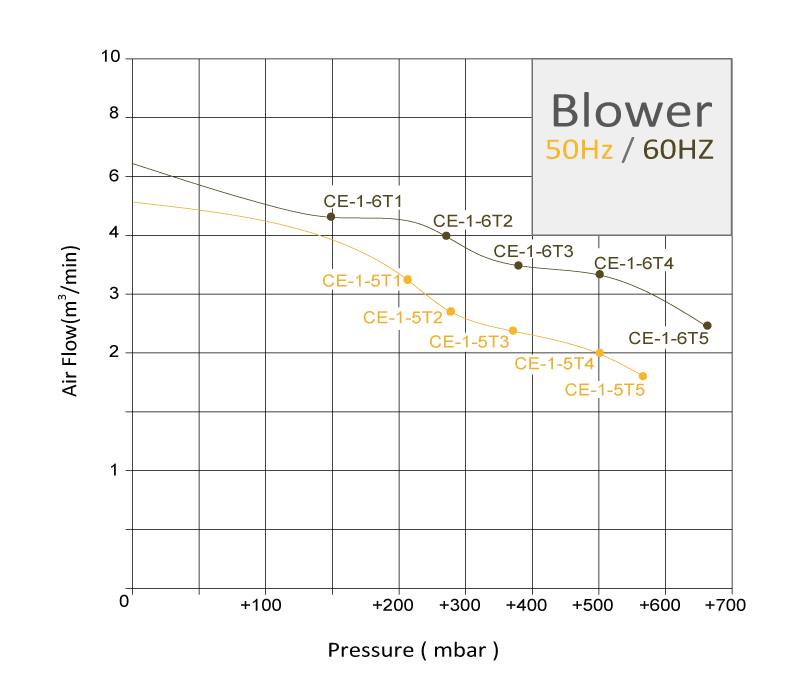

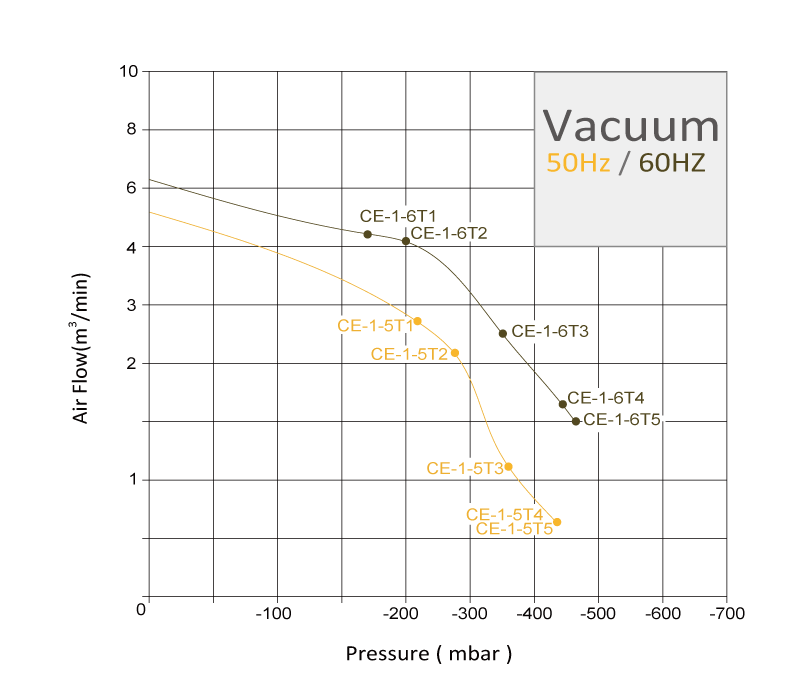

Performance Curve
50Hz
| Model | Phase | Maximum performance when used as Blower | Maximum performance when used as Vacuum | Motor ratings | Noise Level dB(A) |
Weight | |||||
| Rated output | Voltage | Current when used as Blower | Current when used as Vacuum | ||||||||
| m³/min | mbar | m³/min | mbar | kW | V | Amps | Amps | kg | |||
| CE-1-5T1 | 3 | 5.3 | +210 | 5.3 | -220 | 2.20 | 200-240△/ 345-416Y | 10.8-10 /6.1-5.8 | 10.3-9.9 /6.1-5.7 | 77 | 51 |
| CE-1-5T2 | 3 | 5.3 | +260 | 5.3 | -280 | 3 | 200-240△/ 345-416Y | 12.6-12.1 /7.4-7.1 | 12.1-11.7 /7.1-6.8 | 77 | 52 |
| CE-1-5T3 | 3 | 5.3 | +380 | 5.3 | -360 | 4.3 | 200-240△/ 345-416Y | 16.2-16.7 /9.4-9.7 | 15.7-16.4 /9-9.4 | 77 | 57 |
| CE-1-5T4 | 3 | 5.3 | +500 | 5.3 | -440 | 5.5 | 200-240△/ 345-416Y | 20.5-20.7 /11.9-11.7 | 17.8-18.7 /10.4-10.7 | 77 | 77 |
| CE-1-5T5 | 3 | 5.3 | +570 | 5.3 | -440 | 7.5 | 200-240△/ 345-416Y | 23.5-27.9 /13.6-15.7 | 18.7-25.1 /10.7-14.1 | 77 | 80 |
60Hz
| Model | Phase | Maximum performance when used as Blower | Maximum performance when used as Vacuum | Motor ratings | Noise Level dB(A) |
Weight | |||||
| Rated output | Voltage | Current when used as Blower | Current when used as Vacuum | ||||||||
| m³/min | mbar | m³/min | mbar | kW | V | Amps | Amps | kg | |||
| CE-1-6T1 | 3 | 6.3 | +150 | 6.3 | -170 | 2.55 | 208-275△/ 380-480Y | 11.2-9.4 /6.1-5.4 | 11.1-9.2 /6.1-5.4 | 81 | 51 |
| CE-1-6T2 | 3 | 6.3 | +280 | 6.3 | -200 | 3.45 | 208-275△/ 380-480Y | 12.6-12.1 /7.4-7.1 | 11.8-10.4 /7-6 | 81 | 52 |
| CE-1-6T3 | 3 | 6.3 | +380 | 6.3 | -350 | 4.6 | 208-275△/ 380-480Y | 16.2-16.7 /9.4-9.7 | 17.8-15.9 /9.9-9.2 | 81 | 57 |
| CE-1-6T4 | 3 | 6.3 | +500 | 6.3 | -440 | 5.5 | 208-275△/ 380-480Y | 25.4-21 /13.8-12.1 | 21.2-18.5 /11.6-10.7 | 81 | 77 |
| CE-1-6T5 | 3 | 6.3 | +660 | 6.3 | -460 | 8.6 | 208-275△/ 380-480Y | 31.3-28.7 /16.9-16.3 | 21.4-23.5 /11.8-13.4 | 81 | 80 |
