Technical Data
50 Hz version:
Max Blow – 210 m³/h / +150~+270 mbar
Max Vacuum – 210 m³/h / -130~-220 mbar
60 Hz version:
Max Blow – 252 m³/h / +130~+250 mbar
Max Vacuum – 252 m³/h / -150~-240 mbar
CD series
Product Features
- CE Norm: 89/336, 73/23, EN60204-1, EN50081-2, EN50082-2
- Insulation Class: F (155°C)
- Ambient Temp.: 30°C
- Degree of Protection: IP 54 (IP 55 is optional)
- Mounting: Vertical / horizontal
- Voltage Tolerance: ±10% of nominal U
Applications
- Pneumatic air tube systems
- Pneumatic conveying systems
- Vacuum dealing systems
- Vacuum transport systems
- Drying systems
- Bottle-filling stations
- Printing machines
- Dental equipment

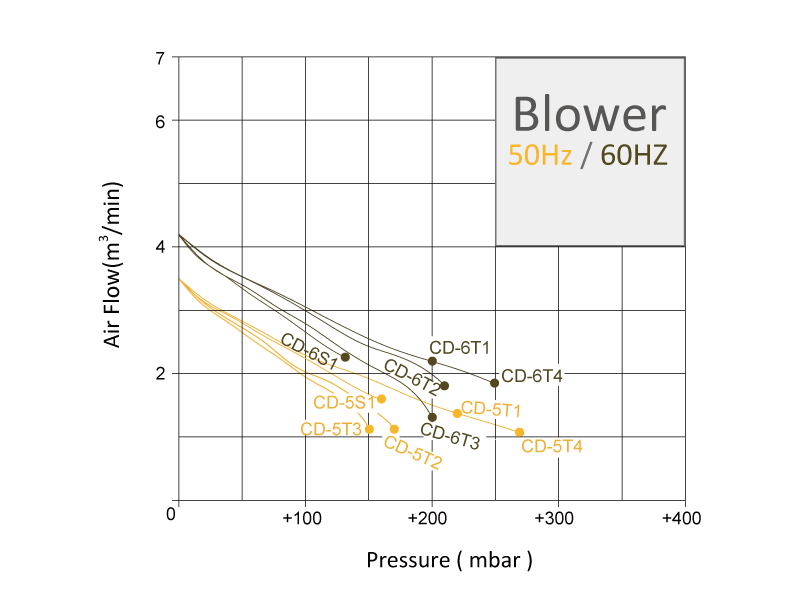

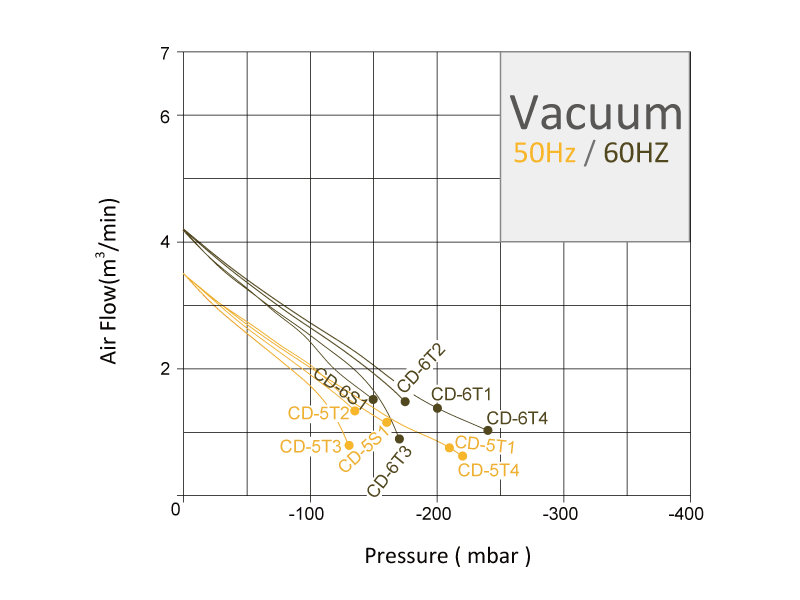

Performance Curve
50Hz
| Model | Phase | Maximum performance when used as Blower | Maximum performance when used as Vacuum | Motor ratings | Noise Level dB(A) |
Weight | |||||
| Rated output | Voltage | Current when used as Blower | Current when used as Vacuum | ||||||||
| m³/min | mbar | m³/min | mbar | kW | V | Amps | Amps | kg | |||
| CD-5T1 | 3 | 3.5 | +220 | 3.5 | -210 | 1.50 | 200-240 / 345-416 | 7.44-8.76 / 4.28-5.1 | 6.72-8.52 / 3.85-4.93 | 73 | 23.5 |
| CD-5T2 | 3 | 3.5 | +170 | 3.5 | -135 | 1.50 | 200-240 / 345-416 | 5.87-8.46 / 3.24-4.69 | 5.54-9.30 / 3.12-4.71 | 73 | 23.5 |
| CD-5T3 | 3 | 3.5 | +150 | 3.5 | -130 | 1.50 | 200-240 / 345-416 | 5.57-8.38 / 3.17-4.81 | 5.35-7.8 / 3.01-4.81 | 73 | 23.5 |
| CD-5T4 | 3 | 3.5 | +270 | 3.5 | -220 | 2.20 | 200-240 / 345-416 | 8.67-9.45 / 5.0-5.43 | 7.08-8.79 / 4.07-5.02 | 73 | 26 |
| CD-5S1 | 1 | 3.5 | +160 | 3.5 | -160 | 1.50 | 104-127 / 208-254 | 18.9-19.1 / 9.1-10.0 | 17.0-18.7 / 8.2-9.6 | 73 | 26 |
60Hz
| Model | Phase | Maximum performance when used as Blower | Maximum performance when used as Vacuum | Motor ratings | Noise Level dB(A) |
Weight | |||||
| Rated output | Voltage | Current when used as Blower | Current when used as Vacuum | ||||||||
| m³/min | mbar | m³/min | mbar | kW | V | Amps | Amps | kg | |||
| CD-6T1 | 3 | 4.2 | +200 | 4.2 | -200 | 1.75 | 208-275 / 380-480 | 8.0-8.1 / 4.38-4.74 | 7.26-7.76 / 4.0-4.58 | 73 | 23.5 |
| CD-6T2 | 3 | 4.2 | +210 | 4.2 | -175 | 1.75 | 208-275 / 380-480 | 7.31-8.18 / 4.07-4.61 | 6.4-7.74 / 3.62-4.37 | 73 | 23.5 |
| CD-6T3 | 3 | 4.2 | +200 | 4.2 | -170 | 1.75 | 208-275 / 380-480 | 6.78-7.83 / 3.79-4.53 | 6.16-7.56 / 3.43-4.41 | 73 | 23.5 |
| CD-6T4 | 3 | 4.2 | +250 | 4.2 | -240 | 2.55 | 208-275 / 380-480 | 9.7-9.2 / 5.3-5.13 | 8.35-8.36 / 4.6-4.81 | 73 | 26 |
| CD-6S1 | 1 | 4.2 | +130 | 4.2 | -150 | 1.75 | 104-127 / 208-254 | 21.1-16.4 / 9.9-7.9 | 20.6-16.3 / 9.7-7.9 | 73 | 26 |
