BA series
Product Features
- Robust construction
- Quick Self-priming with higher outlet design
- Stainless steel impeller is optional
Applications
- Water distribution
- Pressure boosting
- Irrigation
- Washing
- Rain water collection
- Swimming pools
- Fountains
Technical Data
- Max. flow rate: 40LPM (2.4m3/h)
- Max. head: 28 m
- PH values: 6 to 8
- Power: 1/4HP / 200W
- Liquid Temp.:5°C to 60°C / +41°F to +140 °F
- Degree of protection: IP 54
- Material:
Motor casing – Aluminum
Pump casing – Stainless steel / FC200
Impeller – Brass or SUS304

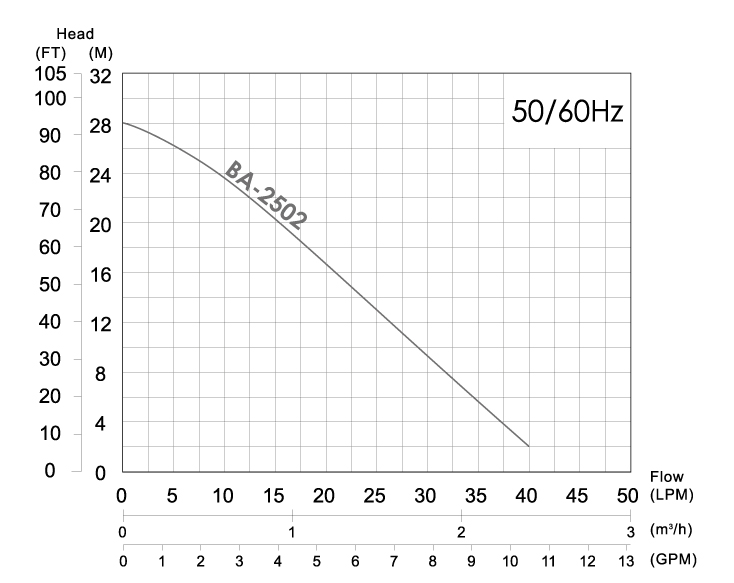

Performance Curve
Specifications
| Model |
Output |
Outlet |
Max Flow |
Max Head |
Dimension |
Weight |
| HP |
W |
mm |
inch |
LPM |
M |
Kg |
| BA-2502 |
1/4 |
200 |
25 |
1″ |
40 |
30 |
252 x 170 x 168 |
6.5 |
| BA-2502S |
1/4 |
200 |
25 |
1″ |
40 |
30 |
252 x 170 x 168 |
6.5 |
| BA-2502T |
1/4 |
200 |
25 |
1″ |
40 |
30 |
260 x 212 x 333 |
8 |
| BA-2502TS |
1/4 |
200 |
25 |
1″ |
40 |
30 |
260 x 212 x 333 |
8 |
