Technical Data
- 4″ pump
- Capacity: 3 m³/h / 13 GPM
- Max. sand content: 50g/m³
- pH values: 6 to 8
- Liquid Temp. up to 35°C
- Material:
- Impellers – POM (WP05~35) / PC/GF(WP40~)
- Diffusers – PC/GF
WP-13 series
Product Features
- Floating impeller design for sand resistance and reducessand blocking
- Built-in check valve to prevent back flow
- SUS 304 polished stainless steel shell
- Shafts are made from hex 304 stainless steel bar material
- Built-in SUS 304 stainless steel strainer
Applications
- Residential potable water supply from deep wells
- Municipal and industrial water supply
- Irrigation and other agricultural applications
- Firefighting systems
- Pressure boosting in high-rise buildings and other applications
Performance Curve
50Hz
| Model | DISCH | TOTAL HEAD | CAPACITY | M³/hr | HEAD | MOTOR | kW |
| inch | M | GPM | M | HP | |||
| WP-1306 | 1-1/4″/1-1/2″/2″ | 53 | 13 | 3 | 22 | 0.5 | 0.37 |
| WP-1308 | 1-1/4″/1-1/2″/2″ | 74 | 13 | 3 | 32 | 0.75 | 0.55 |
| WP-1310 | 1-1/4″/1-1/2″/2″ | 89 | 13 | 3 | 41 | 1 | 0.75 |
| WP-1315 | 1-1/4″/1-1/2″/2″ | 134 | 13 | 3 | 60 | 1.5 | 1.1 |
| WP-1320 | 1-1/4″/1-1/2″/2″ | 178 | 13 | 3 | 79 | 2 | 1.5 |
| WP-1330 | 1-1/4″/1-1/2″/2″ | 266 | 13 | 3 | 110 | 3 | 2.2 |
| WP-1335 | 1-1/4″/1-1/2″/2″ | 317 | 13 | 3 | 145 | 4 | 3 |

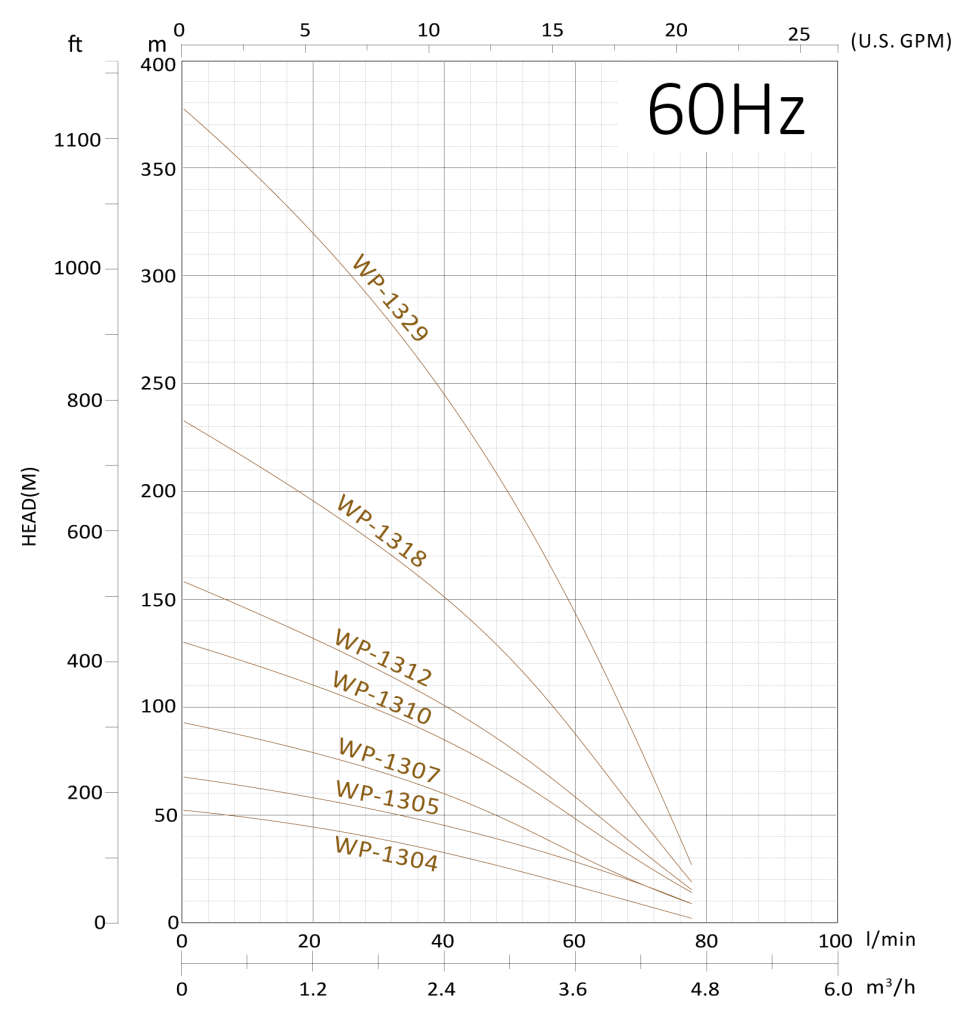

60Hz
| Model | DISCH | TOTAL HEAD | CAPACITY | M³/hr | HEAD | MOTOR | kW |
| inch | M | GPM | M | HP | |||
| WP-1304 | 1-1/4″/1-1/2″/2″ | 52 | 13 | 3 | 36 | 0.5 | 0.37 |
| WP-1305 | 1-1/4″/1-1/2″/2″ | 67 | 13 | 3 | 49 | 0.75 | 0.55 |
| WP-1307 | 1-1/4″/1-1/2″/2″ | 94 | 13 | 3 | 64 | 1 | 0.75 |
| WP-1310 | 1-1/4″/1-1/2″/2″ | 130 | 13 | 3 | 93 | 1.5 | 1.1 |
| WP-1312 | 1-1/4″/1-1/2″/2″ | 157 | 13 | 3 | 109 | 2 | 1.5 |
| WP-1318 | 1-1/4″/1-1/2″/2″ | 233 | 13 | 3 | 163 | 3 | 2.2 |
| WP-1329 | 1-1/4″/1-1/2″/2″ | 378 | 13 | 3 | 265 | 5 | 3.7 |
