Technical Data
50 Hz version:
Operating pressure : 0.13-0.15 bar(1.85-2.13 psi)
Air flow : 46~84 LPM
60 Hz version:
Operating pressure : 0.13-0.15 bar(1.85-2.13 psi)
Air flow : 45~82 LPM
LA-40/60/80 series
Product Features
- Compact design
- Pump casing is made of aluminum
- No Lubrication Necessary
- Maintenance-free & oil-free
- Design as customer’s requirement is available
- Low noise level
- Smooth Air Flow
Applications
- Wastewater Treatment
- Inflatable Packaging Material Machines
- Koi Ponds
- Air Mattresses
- Medical Equipment
- Massage Bed and Chair Mechanisms
- Water Gardens
- Air Sampling
- Aqua Culture
- Pneumatic Massage Equipment
- Medical Application
- Septic Tanks
- Bubble Bath
- Oxygen Supply for Fish Tank

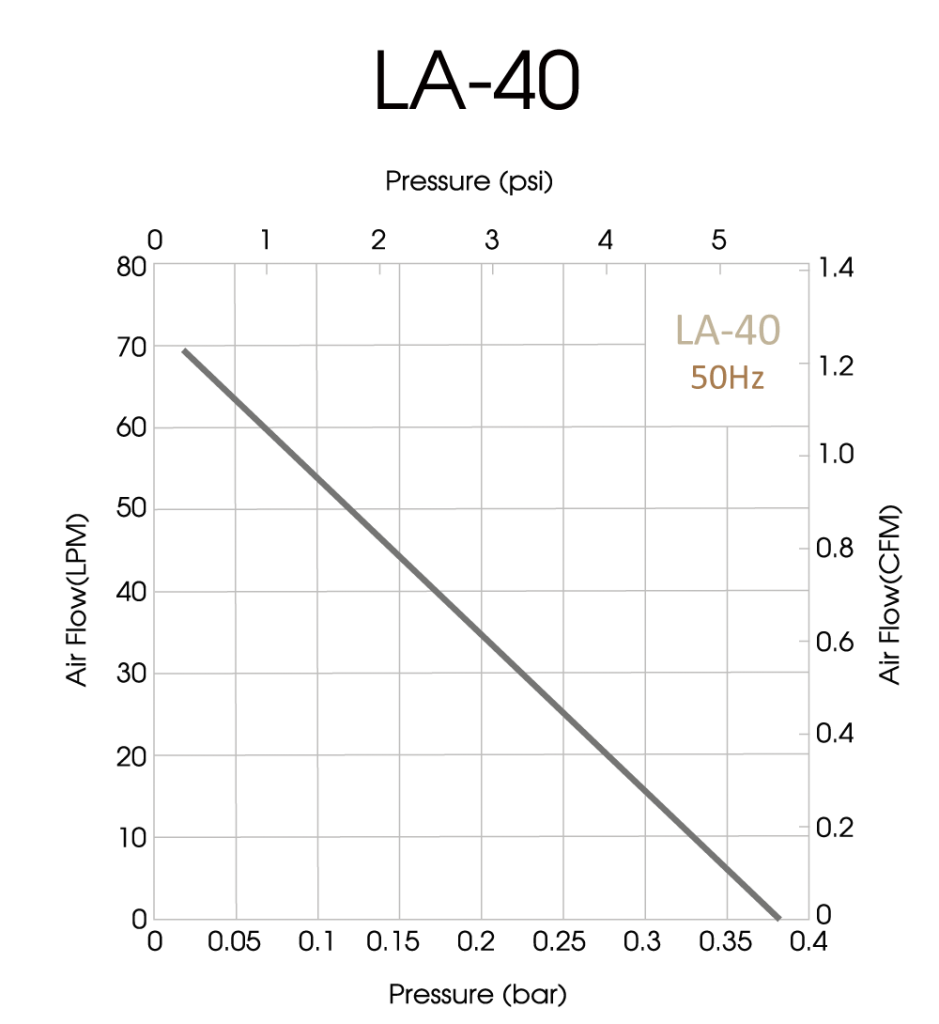

Performance Curve
50Hz
| Model | Volt | Operating pressure (bar) |
Air Flow (L/min) | Power (W) | Noise Level (dB) |
Maximum pressure | Weight (kg) |
|
| psi | bar | |||||||
| LA-40 | 110-120V/ 220-240V |
0.13 (1.85psi) | 46 | 38 | 32 | 5.4 | 0.38 | 5.4 |
| LA-60 | 110-120V/ 220-240V |
0.15(2.13psi) | 70 | 63 | 37 | 7.24 | 0.51 | 6.26 |
| LA-80 | 110-120V/ 220-240V |
0.15 (2.13psi) | 84 | 78 | 39 | 7.8 | 0.55 | 6.28 |
60Hz
| Model | Volt | Operating pressure (bar) |
Air Flow (L/min) | Power (W) | Noise Level (dB) |
Maximum pressure | Weight (kg) |
|
| psi | bar | |||||||
| LA-40 | 110-120V/ 220-240V |
0.13 (1.85psi) | 45 | 35 | 36 | 6.28 | 0.44 | 5.4 |
| LA-60 | 110-120V/ 220-240V |
0.15(2.13psi) | 65 | 60 | 38 | 6.83 | 0.48 | 6.26 |
| LA-80 | 110-120V/ 220-240V |
0.15 (2.13psi) | 82 | 81 | 39 | 7.68 | 0.54 | 6.28 |
