Technical Data
50 Hz version:
Operating pressure : 0.18-0.2 bar(2.56-2.84 psi)
Air flow : 108~125 LPM
60 Hz version:
Operating pressure : 0.18-0.2 bar(2.56-2.84 psi)
Air flow : 105~123 LPM
LA-100/120 series
Product Features
- Compact design
- Pump casing is made of aluminum
- No Lubrication Necessary
- Maintenance-free & oil-free
- Design as customer’s requirement is available
- Low noise level
- Smooth Air Flow
Applications
- Wastewater Treatment
- Inflatable Packaging Material Machines
- Koi Ponds
- Air Mattresses
- Medical Equipment
- Massage Bed and Chair Mechanisms
- Water Gardens
- Air Sampling
- Aqua Culture
- Pneumatic Massage Equipment
- Medical Application
- Septic Tanks
- Bubble Bath
- Oxygen Supply for Fish Tank

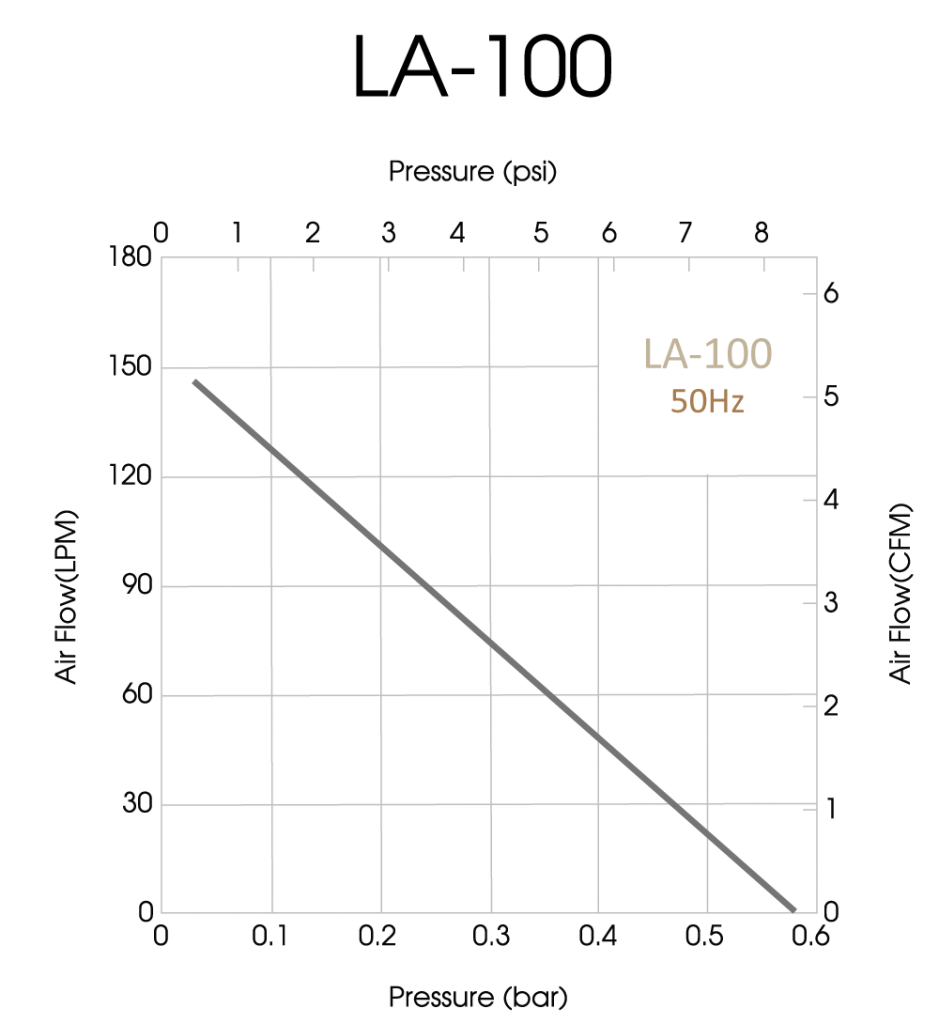

Performance Curve
50Hz
| Model | Volt | Operating pressure (bar) |
Air Flow (L/min) | Power (W) | Noise Level (dB) |
Maximum pressure | Weight (kg) |
|
| psi | bar | |||||||
| LA-100 | 110-120V/ 220-240V |
0.18 (2.56psi) | 108 | 98 | 41 | 8.25 | 0.58 | 12.1 |
| LA-120 | 110-120V/ 220-240V |
0.20(2.84psi) | 125 | 130 | 42 | 7.25 | 0.51 | 12.1 |
60Hz
| Model | Volt | Operating pressure (bar) |
Air Flow (L/min) | Power (W) | Noise Level (dB) |
Maximum pressure | Weight (kg) |
|
| psi | bar | |||||||
| LA-100 | 110-120V/ 220-240V |
0.18 (2.56psi) | 105 | 110 | 40 | 6.69 | 0.47 | 12.1 |
| LA-120 | 110-120V/ 220-240V |
0.20(2.84psi) | 123 | 130 | 43 | 6.69 | 0.47 | 12.1 |
