Technical Data
- 4″ pump
- Capacity: 03 m³/h
- Max. sand content: 50 g/m³
- pH values: 6 to 8
- Liquid Temp. up to 35 °C
- Material:
1. Impellers/Diffusers – SUS 304
2. Shaft -SUS304
WS-03 series
Product Features
- 100% SUS 304 stainless steel made
- Superior hydraulics, reliability and pumping efficiency
- Longer lifetime
- Strong, stainless-steel quality
- Sand resistance
Applications
- Irrigation/ water supply
- Groundwater intake/ water supply
- Dewatering (pasturage, sump, pond, and mining drainage, etc.)
- Fountains
- Pressure boosting
Performance Curve

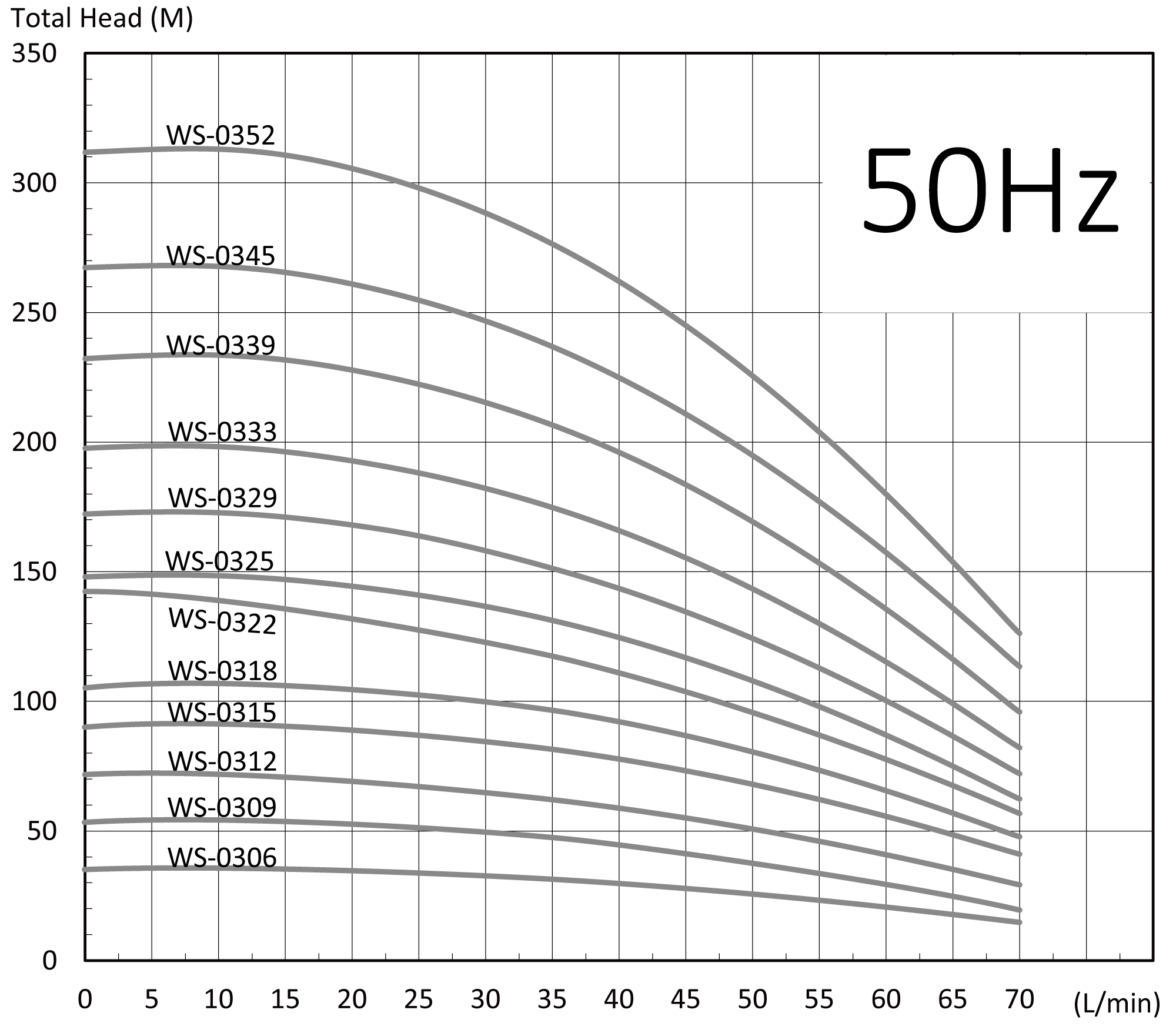

50Hz
| Model | DISCH | TOTAL HEAD | CAPACITY | HEAD | LENGTH | WEIGHT | Required Power | ||
| (inch) | (m) | L/min | M³/hr. | (m) | (mm) | (kg) | HP | kW | |
| WS-0306 | 1-1/4″ | 36 | 50 | 3 | 25 | 291 | 2.6 | 0.5 | 0.37 |
| WS-0309 | 1-1/4″ | 54 | 50 | 3 | 37 | 354 | 3.1 | 0.75 | 0.55 |
| WS-0312 | 1-1/4″ | 72 | 50 | 3 | 49 | 417 | 3.7 | 1 | 0.75 |
| WS-0318 | 1-1/4″ | 108 | 50 | 3 | 75 | 543 | 4.9 | 1.5 | 1.1 |
| WS-0325 | 1-1/4″ | 149 | 50 | 3 | 102 | 690 | 6.3 | 2 | 1.5 |
| WS-0333 | 1-1/4″ | 198 | 50 | 3 | 137 | 858 | 7.9 | 3 | 2.2 |
| WS-0345 | 1-1/4″ | 268 | 50 | 3 | 194 | 1146 | 10.8 | 5 | 3.7 |
| WS-0352 | 1-1/4″ | 312 | 50 | 3 | 229 | 1293 | 12.5 | 7.5 | 5.5 |
60Hz
| Model | DISCH | TOTAL HEAD | CAPACITY | HEAD | LENGTH | WEIGHT | Required Power | ||
| (inch) | (m) | L/min | M³/hr. | (m) | (mm) | (kg) | HP | kW | |
| WS-0305 | 1-1/4″ | 47 | 50 | 3 | 36 | 270 | 2.4 | 0.5 | 0.37 |
| WS-0307 | 1-1/4″ | 66 | 50 | 3 | 51 | 312 | 2.7 | 1 | 0.75 |
| WS-0309 | 1-1/4″ | 85 | 50 | 3 | 65 | 354 | 3.1 | 1 | 0.75 |
| WS-0313 | 1-1/4″ | 123 | 50 | 3 | 94 | 438 | 3.8 | 1.5 | 1.1 |
| WS-0317 | 1-1/4″ | 160 | 50 | 3 | 120 | 522 | 4.5 | 2 | 1.5 |
| WS-0318 | 1-1/4″ | 165 | 50 | 3 | 125 | 543 | 4.7 | 2 | 1.5 |
| WS-0323 | 1-1/4″ | 216 | 50 | 3 | 160 | 648 | 5.6 | 3 | 2.2 |
| WS-0324 | 1-1/4″ | 222 | 50 | 3 | 165 | 669 | 5.8 | 3 | 2.2 |
| WS-0331 | 1-1/4″ | 290 | 50 | 3 | 214 | 816 | 7.4 | 4 | 3 |
| WS-0336 | 1-1/4″ | 337 | 50 | 3 | 256 | 921 | 8.6 | 5 | 3.7 |
