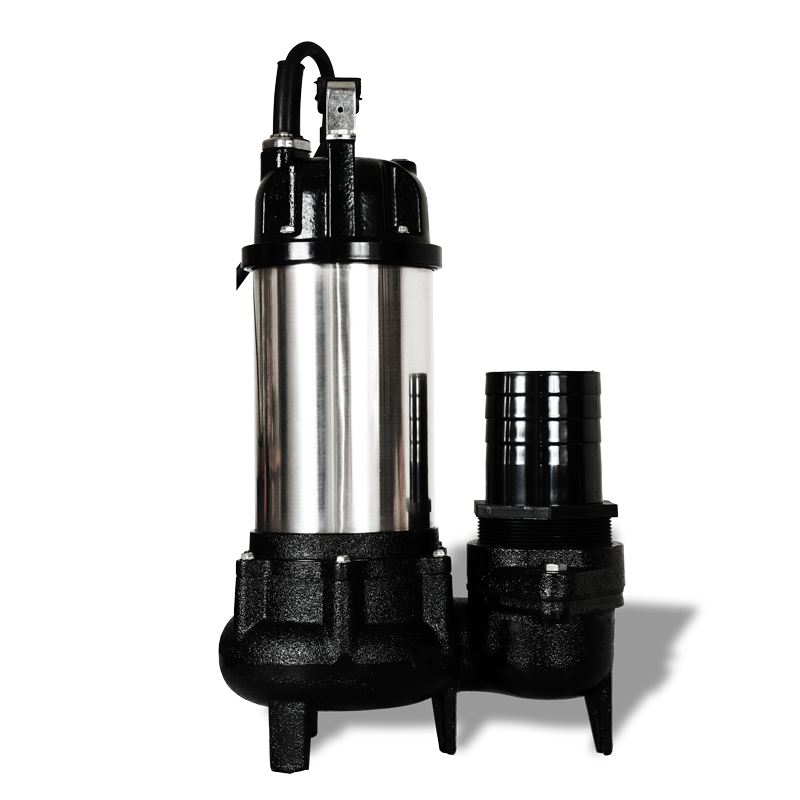

RA series
Product Features
- Can be 24-hour continuous operation
- Suitable for vertical or horizontal installation
- Vortex impeller with high pumping efficiency and reduce risk of jamming or clogging
- Robust construction
- Lightweight and portable
- Supplied with or without float switch
Applications
- Lawn and garden irrigation
- Sump and general drainage
- Pool emptying and fountains
- Creating streams and waterfalls in your garden pond
- Removing rain or flood water from your floors and any other locations
Technical Data
- Max. flow rate: 210 LPM (12.6 m³/h)
- Max. head: 30 m
- pH values: 6 to 8
- Power: 1.5 HP to 3 HP/ 1.1 kW to 2.2 kW
- Liquid Temp.: 0 °C to 40 °C/ +32 °F to +104 °F
- Degree of protection: IP 68
- Installation depth: Max. 8 m below liquid level
- Material: Motor casing – Stainless steel / Pump body – Cast iron
Performance Curve
50Hz
| Model |
Phase |
Output |
Outlet |
Max Flow |
Max
Head |
Max. particle size |
Dimension |
Weight |
| HP |
W |
mm |
inch |
LPM |
M |
mm |
Kg |
| RA-5003 |
1 |
1/3 |
250 |
50 |
2″ |
270 |
7 |
6 |
177 x 162 x 379 |
7 |
| RA-5005 |
1 |
1/2 |
400 |
50 |
2″ |
320 |
9 |
6 |
177 x 162 x 399 |
8 |
| RA-5010 |
1 |
1 |
750 |
50 |
2″ |
380 |
11 |
6 |
177 x 162 x 414 |
11 |
60Hz
| Model |
Phase |
Output |
Outlet |
Max Flow |
Max
Head |
Max. particle size |
Dimension |
Weight |
| HP |
W |
mm |
inch |
LPM |
M |
mm |
Kg |
| RA-5003 |
1 |
1/3 |
250 |
50 |
2″ |
250 |
7 |
6 |
177 x 162 x 379 |
7 |
| RA-5005 |
1 |
1/2 |
400 |
50 |
2″ |
320 |
10 |
6 |
177 x 162 x 399 |
8 |
| RA-5010 |
1 |
1 |
750 |
50 |
2″ |
380 |
13 |
6 |
177 x 162 x 414 |
11 |
