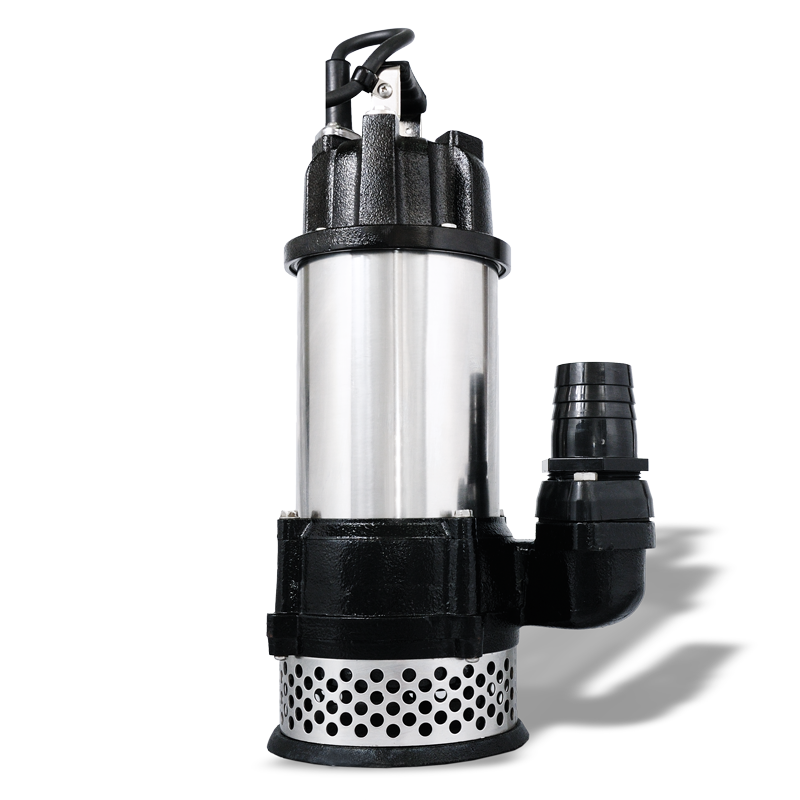

IA series
Product Features
- High quality stainless steel materials
- Robust construction
- Lightweight and portable
- IA can pump down to 3 mm water level
- The motor is cooled by the pumped liquid
- Nylon+glass fiber Impeller is optional
- Supplied with or without float switch
Applications
- Groundwater lowering
- Drainage of cellars or buildings
- Pumping of domestic wastewater without toilet waste
- Emptying applications, e.g. in pools, tanks and vessels
- Pumping applications within agriculture, the dairy industry, horticulture and the process industry
Technical Data
- Max. flow rate: 200 LPM (12 m³/h)
- Max. head: 11 m
- Max. particle size: 7 mm
- pH values: 6 to 8
- Power: 1/2 HP / 400 W
- Liquid Temp.: 0 °C to 40 °C/ +32 °F to +104 °F
- Degree of protection: IP 68
- Installation depth: Max. 8 m below liquid level
- Material: Stainless steel
Performance Curve
Specifications
| Model |
Phase |
Output |
Outlet |
Max Flow |
Max Head |
Max. particle size |
Dimension |
Weight |
| HP |
W |
mm |
inch |
LPM |
M |
mm |
Kg |
| IA-2505 |
1 |
1/2 |
400 |
25 |
1″ |
170 |
11 |
7 |
205 x 205 x 350 |
16 |
| IA-5005 |
1 |
1/2 |
400 |
50 |
2″ |
200 |
10 |
7 |
205 x 205 x 350 |
16 |
