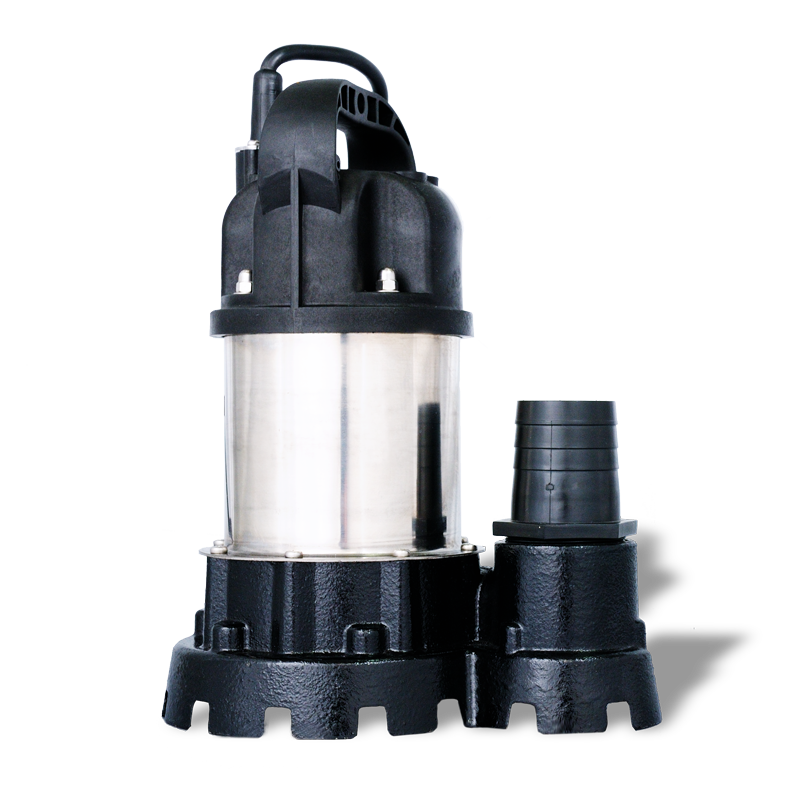

BC series
Product Features
- High operating efficiency- lowers operating costs
- Stainless steel liquid end components- high quality;
corrosion resistance
- Open or close impeller is optional
Applications
- Beverage process
- Dirty liquid handling
- Food process
- Liquid transfer
- Water treatment
- Plant services
- Pressure boosting
- Spraying Systems
- Water Circulation
Technical Data
- Max. flow rate: 720LPM(43.2 m3/h)
- Max. head: 24m
- Max. particle size: 19mm(open impeller design)
- PH values: 6 to 8
- Power: 2HP to 3HP/ 1.5kW to 2.2kW
- Liquid Temp.: 4°C to 80°C/ +39°F to +176 °F
- Degree of protection: IP 55
- Insulation class: F
- Material:
Motor casing – Aluminum
Pump casing – SUS304
Impeller – SUS304

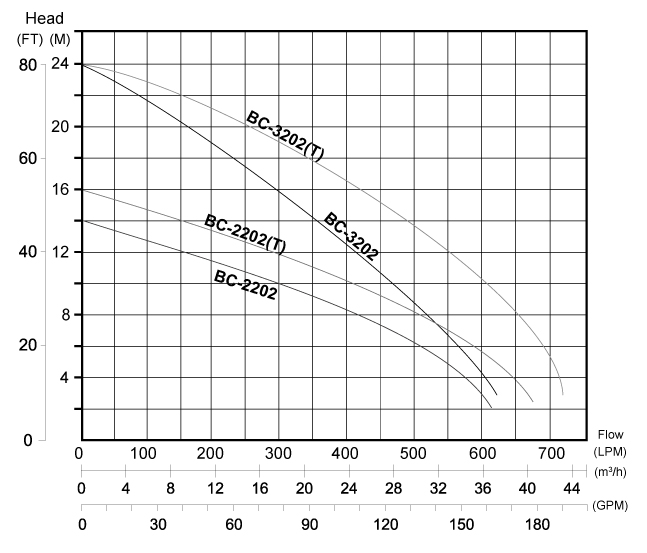

Performance Curve
Specifications
| Model |
Phase |
Output |
Connection |
Max Flow |
Max Head |
Dimension |
Weight |
| HP |
KW |
inch |
LPM |
M |
Kg |
| BC-2202 |
1 |
2 |
1.5 |
2″x2″ |
620 |
14 |
380 x 195 x 265 |
20 |
| BC-2202 |
3 |
3 |
2.2 |
2″x2″ |
670 |
16 |
415 x 195 x 242 |
23 |
| BC-3202 |
1 |
2 |
1.5 |
2″x2″ |
630 |
24 |
380 x 195 x 265 |
24 |
| BC-3202 |
3 |
3 |
2.2 |
2″x2″ |
720 |
24 |
415 x 195 x 242 |
25 |
